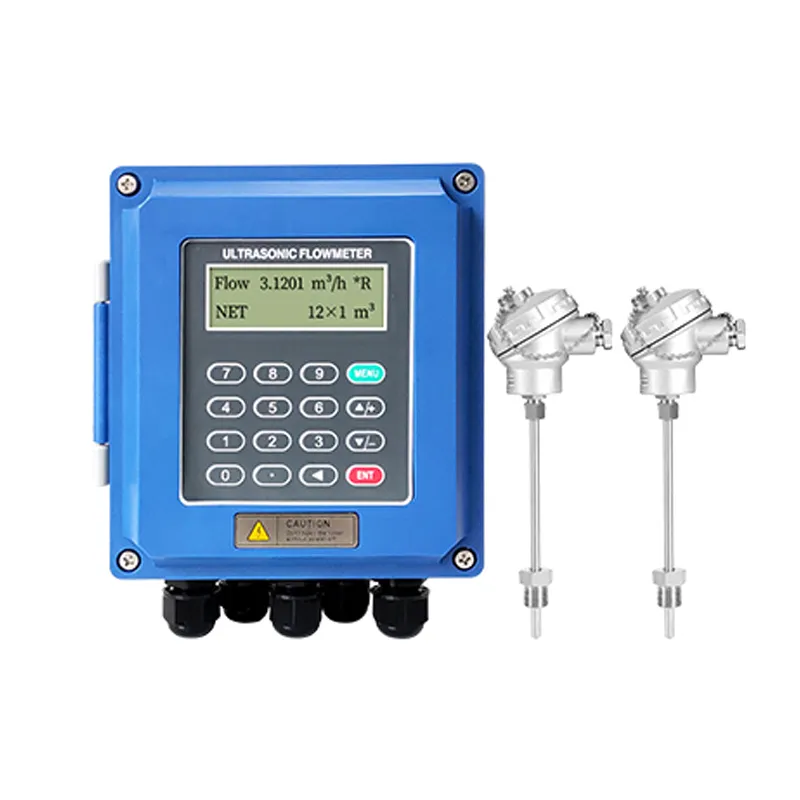

Misuratore di calore ad ultrasuoni

il misuratore di calore ad ultrasuoni combina il sensore di flusso ad ultrasuoni e le doppie sonde di temperatura PT100 per calcolare l'energia di riscaldamento/raffreddamento. Si adatta a DN15-6000 tubi, supporta tipi multi-trasduttore, con registrazione dati e comunicazione RS485 per la misurazione dell'energia HVAC.

Features of Ultrasonic Heat Meter

Integrates flow detection + dual PT100 temperature probes to calculate heat/cold energy
Compatible with clamp-on, insertion, inline three types of transducers
Covers DN15–6000 pipe sizes, suitable for heating & cooling water
No internal moving parts, low pressure loss and long service life
Supports multi-path measurement for stable high-precision data
Built-in data logging, customizable storage interval
Multiple communication: RS485 Modbus,4-20mA output
Complete heat accumulation statistics, supports monthly data filing
Wide temperature range -30℃~160℃, adapt various pipeline conditions

Specification of Ultrasonic Heat Meter

Measurement Accuracy	1.5 class
Repeatability	0.2%
Flow Velocity Range	0.5~5m/s
Measuring Principle	Ultrasonic propagation time difference principle, dual CPU parallel operation, 4-byte floating-point operation
Measuring Period	500mS (2 times per second)
Working Power Supply	Isolated DC8-36V or AC85-264V
Signal Input	3-channel 4-20mA analog input, can input pressure, liquid level, temperature and other signals; 2-channel 3-wire platinum resistance
Signal Input	1-channel standard isolated RS485 output, 1-channel isolated 4-20mA or 0-20mA output (active/passive optional)
Signal Output	Optional HART protocol; Dual-channel isolated OCT output
Signal Output	1-channel bidirectional serial, peripheral universal interface, connect 4-20mA, frequency signal, thermal printer, data recorder, etc.
Communication Protocol	Modbus RTU protocol
Power Consumption	Working current 50mA (under the condition of no keyboard connection and no buzzer sound)
Sensor	External type, insertion type and pipe segment type
The ultrasonic flow meter can be connected to a 3-wire PT100/PT1000 to achieve heat measurement wiring.
