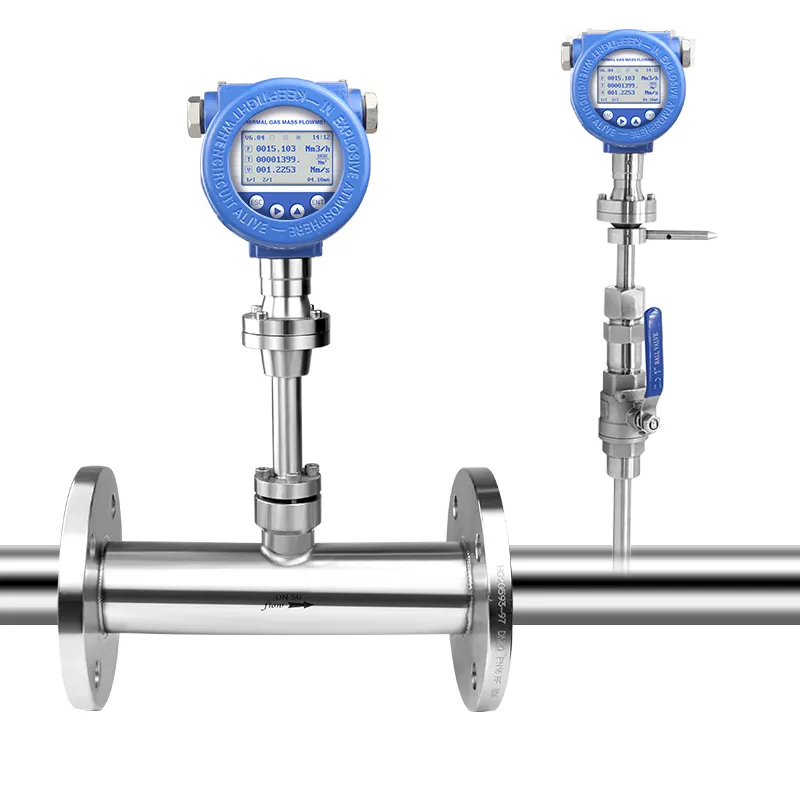

Misuratore di portata massica di Gas termico a inserimento

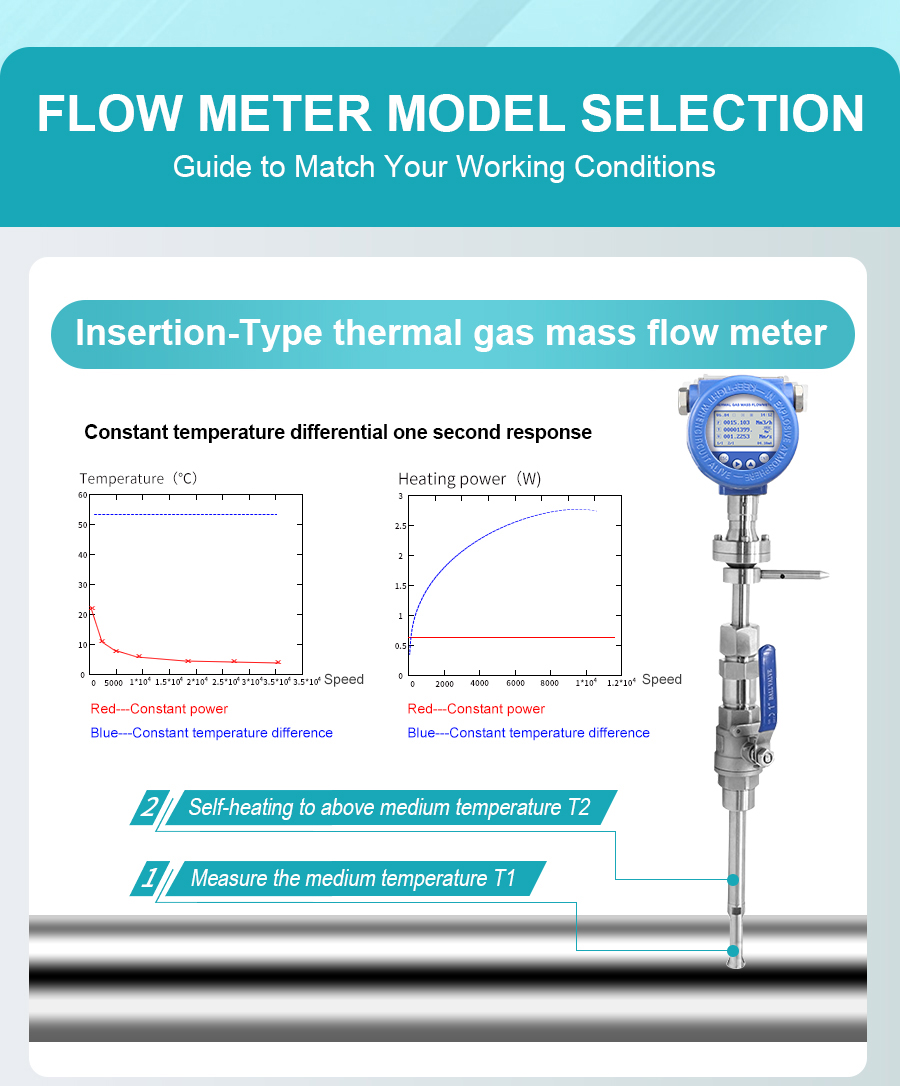

il misuratore di portata massica a gas termico ad inserimento utilizza il principio di diffusione termica, con sonda inossidabile plug-in per DN25 sopra le tubazioni. Misura direttamente la massa del gas senza compensazione della pressione-temperatura, LCD locale dotato, impulsi di supporto, 4-20ma, segnali RS485, montaggio facile senza taglio di tubi.

Features of Insertion Type Thermal Gas Mass Flow Meter

Plug-in structure, no pipeline cutting, convenient installation and disassembly
Suitable for gas pipelines DN25~DN2000
SS316L corrosion-resistant measuring probe
Direct mass flow measurement, no T&P compensation needed
Ultra-low starting flow, tiny pressure loss
Local LCD shows instantaneous and cumulative flow
Multiple outputs: 4-20mA, pulse, RS485, relay alarm
Low cost compared with full pipe type for large pipes

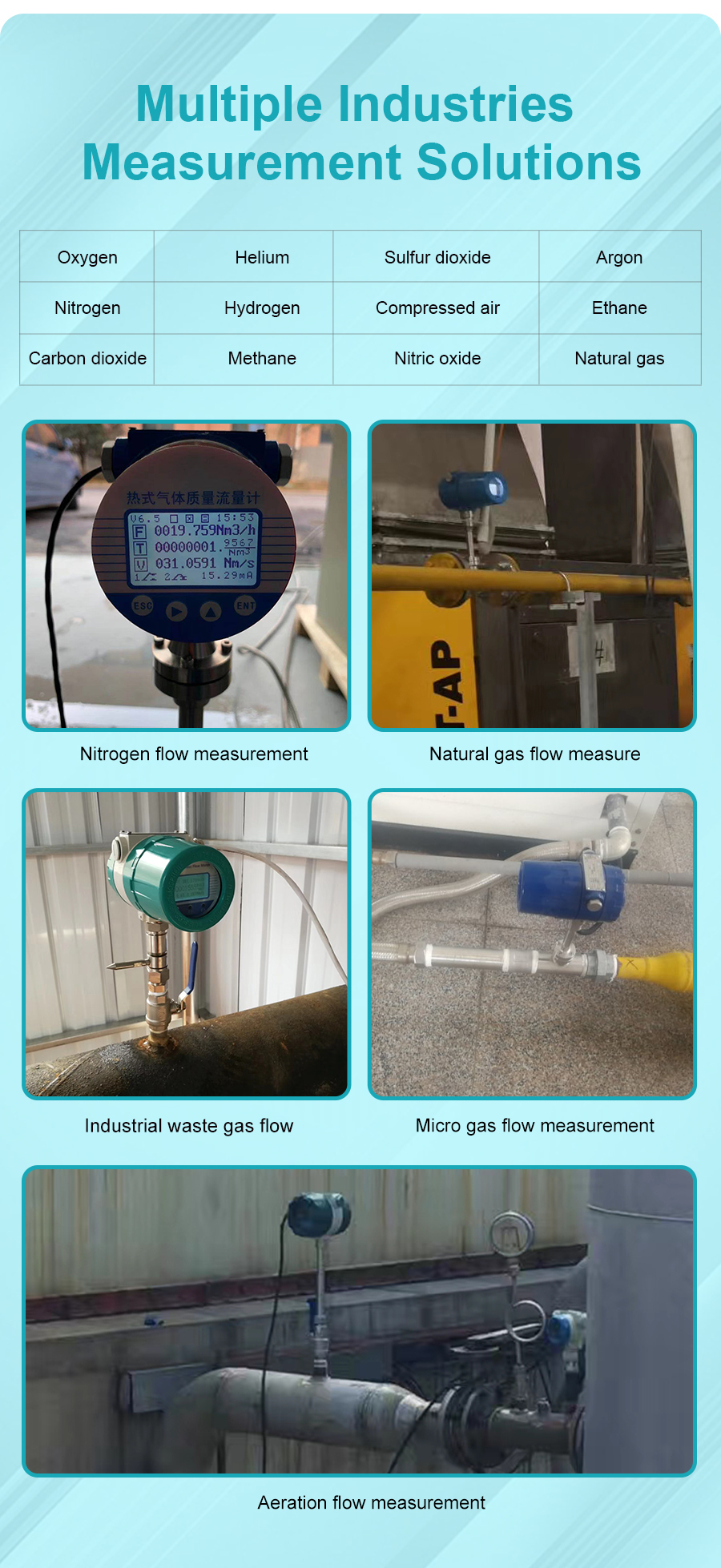

Wide adaptability for air, biogas, nitrogen, natural gas
IP65 protection, optional intrinsic safety explosion-proof

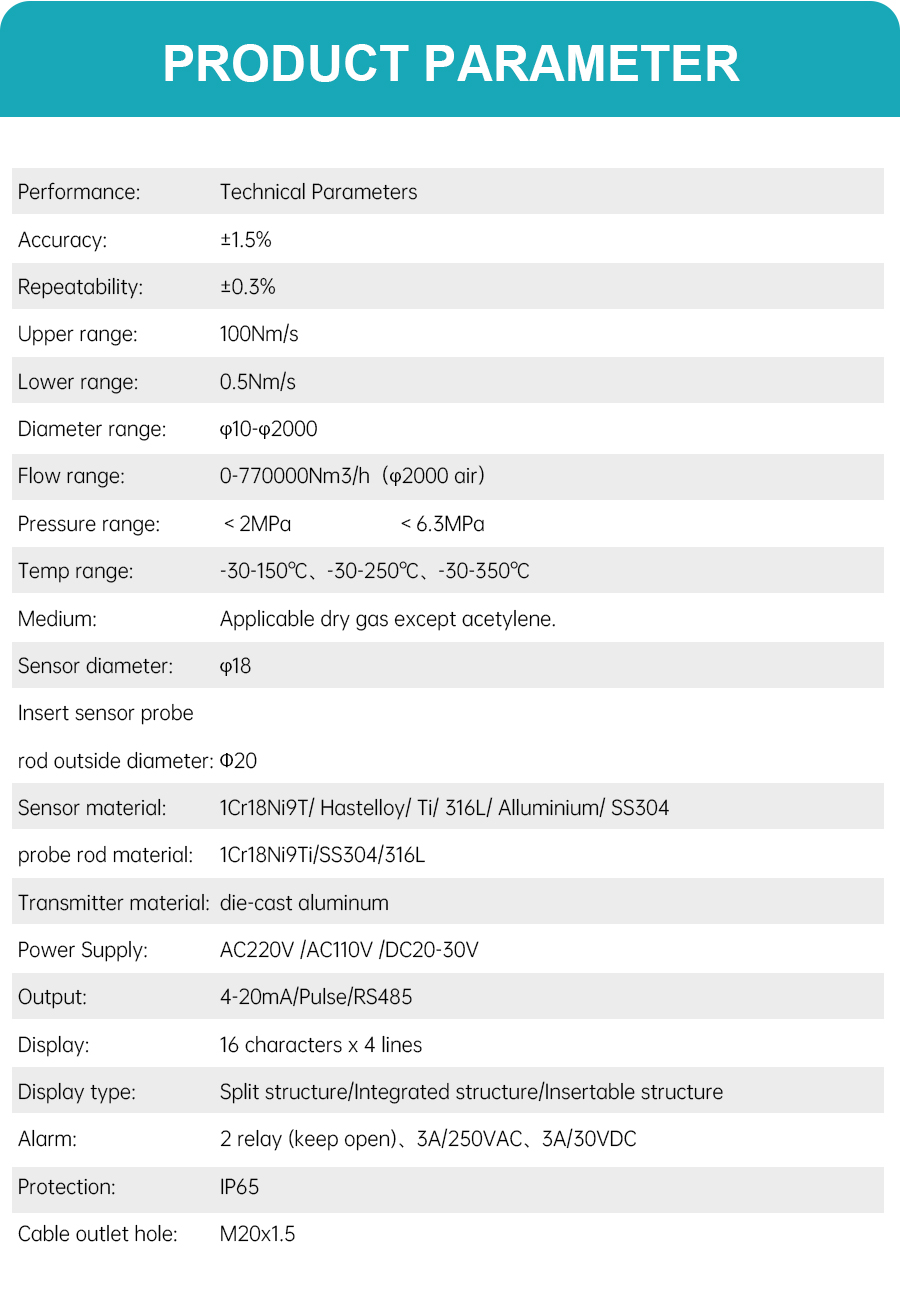

Specification of Insertion Type Thermal Gas Mass Flow Meter

Measuring Medium	Various gases (excluding acetylene)

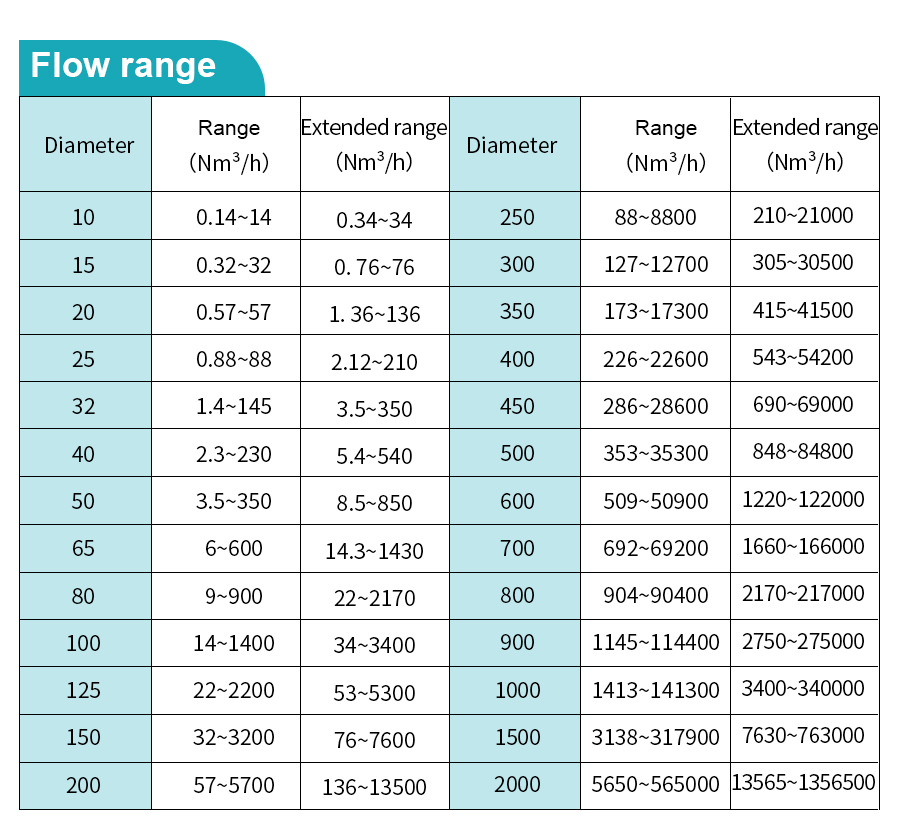

Pipe Diameter Range	DN15~2000mm
Flow Velocity Range	0.1~100Nm/s
Accuracy	Insertion type: 2.5%
Working Temperature	Sensor: normal temperature type -10 ~ +200℃, high temperature type: -10 ~ +350℃; Converter: -20 ~ +45℃
Working Pressure	Medium pressure ≤ 4MPa
Power Supply	Integrated type (DC24V or AC220V ≤ 18W); Split type (AC220V ≤ 19W)
Response Speed	1s
Output Signal	4-20mA (opto-isolated, maximum load 500Ω); RS-485 (opto-isolated), HART protocol
Pipe Material	Carbon steel, stainless steel, plastic, etc.
Display	Integrated type: four-line Chinese liquid crystal display
Display Content	Mass flow, standard volume flow, cumulative flow, standard time, cumulative operating time, medium temperature, standard flow velocity, etc.
Primary Meter Protection Class	IP67
Sensor Material	Stainless steel
